HOME

SECURITY SYSTEMS
  WIRELESS ALARM SIREN
WIRELESS SIREN FEATURES
DATA PROTOCOL Double-sided
FREQUENCY BAND 433.4 - 473.0 Mhz.
COMMUNICATION PERIOD 3-6-9 sn
OPEN AREA DISTANCE Open Area Max: 500 Meters
SIREN ALARM LEVEL 110 db
BATTERY CONSUMPTION Stanbay : (±) 60uA
    Operation : (±)25mA


Alarm : 105 - 110 mA
POWER CONNECTION 3.6V 13000 mA with Battery
    (Optional 12V min.1 A. Adapter)
POWER USAGE TIME

Max 450 Day

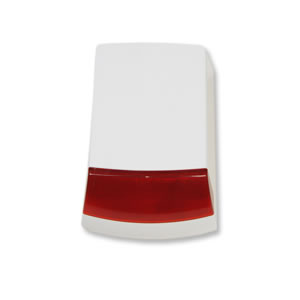

Wireless Alarm Siren

  WIRED ALARM SIREN - Batery
WIRED SIREN FEATURES
OPERATING VOLTAGE 12 - 15Vdc
Max. POWER CONSUMPTION Stanbay : 20mA Alarm : 170mA
AUDIO OUT 120 db
VOICE TONE 3-tone Sequential Tone
BATTERY PROTECTION Limited charge
CARE No Maintenance
LIGHT SIGNAL 5 Pcs Bright White Leds
FLASH

5 Pieces Flash Leds
VOLTAGE REDUCTION SIGNAL 1 and 5 Leds Flashing
SAFE VAULT 3 mm Abs Outer and Stainless Inner Cover
RELAY OUT

NO - NC
TRIGGER PREFERENCE ( - ) and ( + )
  MICROPROCESSOR CONTROL
  COMPATIBLE WITH ALL ALARM PANELS
Wired Alarm Siren

WIRED ALARM SIREN - Accumulator WIRED ALARM SIREN
Wired Alarm Siren Wired Alarm Siren




WIRED ALARM SIREN WIRED ALARM SIREN
Wired Alarm Siren Wired Alarm Siren
